Set up payments
Connect Stripe or another provider, accept wire, check or invoice, take deposits, and sync with QuickBooks.
You decide how exhibitors pay: online by card or bank account, offline by wire, check or invoice, or a mix. All of this is on Registration & Orders, in the Checkout section of the Setup tab.

Online payments
Card payments go straight to your own payment account. Turn on Online payments, choose a Provider and enter its credentials. Only one card provider can be active at a time. The line under the switch names the provider buyers pay through, and that provider's card says Active. The highlighted card is only the one you're looking at: to make a connected provider active, select its card, select Use … for card payments (for example Use QuickBooks for card payments), then Save. Until you save, the card says Active after Save, and your browser asks before you leave the page with the choice unsaved.
When no card provider is active yet, setting one up makes it active: save credentials that pass their connection check (or connect QuickBooks) and it starts taking card payments, with a message saying so. A provider that's already taking cards stays on until you switch. If a provider doesn't pass its connection check when you save, a message names it and says why, and it stays off until you fix it and save again.
Supported providers are Stripe, Authorize.Net, Moolah / NMI Gateway, BluePay, Square, PayPal, Payflow Pro and QuickBooks Payments. ACH / eCheck via Authorize.Net has its own switch and can run alongside your card provider.
After entering credentials, select Save & test connection. Card checkout appears for buyers only when the provider shows Connected.
Stripe
Stripe needs three values from your Stripe dashboard. The Setup steps on the page walk you through each one:
- Publishable key
- Restricted key: a key starting with
rk_. Secret keys starting withsk_are refused, for your security. - Webhook signing secret: copy the Webhook endpoint shown on the page into Stripe, then paste the secret Stripe gives you.
Under Card collection, choose Stripe Checkout page (buyers pay on Stripe's hosted page, the default) or Card form on our checkout.
If your staff take cards with a Stripe card reader in the Scan Attendee app, also fill in Card reader location with the ID of a location you created under Terminal in Stripe (it starts with tml_), and give the restricted key Terminal: Write. Leave both empty if you do not use card readers.
Authorize.Net
Authorize.Net and ACH / eCheck via Authorize.Net each need three values. In the Authorize.Net Merchant Interface they are under Account, Settings, Security Settings:
- API Login ID and Transaction key, from API Credentials & Keys. Creating a new transaction key there stops the old one working, so paste the new one into Map D straight away.
- Public client key, from Manage Public Client Key.
If you run cards and ACH through the same Authorize.Net account, enter the same three values for both.
Before you test the connection, check these in the Merchant Interface. The connection test reports each one and the provider stays off until it is fixed:
- Test Mode, under Account, Settings, must be off. An account in Test Mode records no payments.
- The Transaction Details API, under Account, Settings, must be on. Map D uses it to issue refunds, to check on a payment when Authorize.Net does not answer, and to find ACH payments the bank sends back.
- For ACH / eCheck via Authorize.Net, the account must have eCheck.Net enabled. This is an approval Authorize.Net gives the account, not a setting you can turn on yourself, so ask Authorize.Net for it.
If Authorize.Net does not answer while a buyer is paying, Map D checks whether the payment went through. When it can't tell, the buyer is asked not to pay again and the booth stays held. The order then needs a payment check: see Manage orders and payments.
If a buyer submits the same payment twice within two minutes, Authorize.Net refuses the second one. When the first one went through, Map D records it instead of charging again. Otherwise the buyer is asked to wait two minutes before trying the same payment details again.
Payflow Pro
Payflow Pro buyers enter their card on PayPal's own payment page, then come back to Map D, which takes the payment.
If PayPal does not answer, Map D tries again a few times before giving up. A buyer who could not start paying is asked to try again in a moment, and Payflow Pro stays on for other buyers. When a buyer approved a payment but PayPal never confirmed that Map D took it, the buyer sees the payment as pending, the booth stays held, and the order needs a payment check: see Manage orders and payments.
Moolah / NMI Gateway
NMI needs two keys from your NMI merchant portal, both under Settings, Security Keys:
- Collect.js tokenization key: the public key listed under Public Security Keys with the Tokenization permission.
- API security key: the private key with the API permission, listed under Private Security Keys. NMI shows a new private key only once, so copy it when you create it.
Select Save & test connection to check both keys with NMI. NMI is not switched on until both pass. If the API security key is wrong, the row reads Invalid Credentials. If the tokenization key is wrong, for example a private key pasted into its box, the row says NMI does not recognize it. A sandbox account's keys only work in a test setup, and NMI refuses them on its live system.
Buyers enter their card in fields NMI hosts on the checkout page, so card numbers never reach Map D.
- A buyer who mistypes the card number, expiration date or security code is told which one to check, without waiting. A declined card gets a plain message, never the bank's reason.
- If NMI reports that your merchant account is inactive or not set up for payments, or stops accepting your API key, Map D turns NMI off for the show. Fix the account in your NMI portal, select Save & test connection, and once it shows Connected, turn the provider back on.
- A buyer who repeats the same card and amount within a few minutes is told it is a duplicate transaction. They can wait a few minutes or change the amount.
- If NMI does not answer while a buyer is paying, Map D cannot tell whether the payment went through. The buyer is asked not to pay again, the booth stays held, and the order needs a payment check: see Manage orders and payments. Look for the payment in your NMI portal, then record it on the order if it is there.
- A refund you make from the order is sent to NMI. If the payment has not settled yet and you refund all of it, Map D cancels the payment in NMI instead of refunding it, so the buyer is never charged. A partial refund is always sent as a refund. NMI does not tell Map D about refunds made in its own portal, so record those on the order yourself.
- NMI is for booth and service orders. Ticket checkout does not offer card payment through NMI.
BluePay
BluePay needs two values. In BluePay, go to Admin, Accounts, List and open your account: the Account ID (12 digits) and the Secret Key are on that page. Your BluePay login needs permission to view accounts to see them.
On the BluePay account, Enabled BluePay.js and Weblink bp10emu must be on. Map D uses the first for the card form and the second to take the payment.
Select Save & test connection to check both values with BluePay, without charging anything. If either is wrong, the row reads Invalid Credentials. If you select Create New Key in BluePay, the old key stops working at once: paste the new one here and test again.
Buyers type their card into the checkout page, and BluePay encrypts it in their browser, so card numbers never reach Map D.
- A declined card gets a plain message, never the bank's reason. A buyer whose card was declined can try the same card again straight away.
- If BluePay stops accepting your secret key, Map D turns BluePay off for the show. Update the Secret key, select Save & test connection, and once it shows Connected, turn the provider back on.
- BluePay refuses a repeat of the same card and amount within your account's duplicate window. When the first payment was for the same order and went through, Map D records it instead of charging again. Otherwise the buyer is asked to wait a few minutes.
- If BluePay does not answer while a buyer is paying, Map D checks whether the payment went through and records it if it did. When it still can't tell, the buyer is asked not to pay again, the booth stays held, and the order needs a payment check: see Manage orders and payments.
- A refund you make from the order is sent to BluePay. If the payment has not settled yet and you refund all of it, Map D cancels the payment in BluePay instead of refunding it. A partial refund is always sent as a refund. BluePay does not tell Map D about refunds made in its own site, so record those on the order yourself.
- BluePay charges in US dollars. A show priced in another currency can't take card payments through BluePay.
- BluePay is for booth and service orders. Ticket checkout does not offer card payment through BluePay.
Square
Square needs three values from the Square Developer Console. Open your application and choose Credentials, and make sure the Sandbox or Production switch matches your setup:
- Application ID: starts with
sq0idp-for production orsandbox-sq0idb-for sandbox. An ID from the wrong environment is refused when you save. - Location ID: the Square location that receives the money. It is listed under Locations in the Developer Console.
- Access token: the application's access token for the same environment. It needs permission to take payments and issue refunds. Square shows a production token only when you create it, so copy it then.
Select Save & test connection to check the token and the location with Square, without charging anything. Square is not switched on until the test passes. If the token is wrong, the row reads Invalid Credentials. If the location is inactive or cannot take card payments yet, the row says so: finish that setup in Square, then test again.
A Square location takes payments in one currency only, and Square refuses any other. The test also compares the location's currency with the currency your show is priced in. If they differ, the row reads Provider Unavailable and names both currencies, for example "This Square location takes payments in CAD, but this show is priced in USD." Use a Square location in the show's currency, or change the show's currency, then test again. If you change the show's currency later, select Save & test connection again.
Buyers type their card into a form Square provides on the checkout page, so card numbers never reach Map D.
- A declined card gets a plain message, never the bank's reason.
- If Square stops accepting your access token, Map D turns Square off for the show. Update the Access token, select Save & test connection, and once it shows Connected, turn the provider back on.
- If Square does not answer while a buyer is paying, Map D cannot tell whether the payment went through. The buyer is asked not to pay again, the booth stays held, and the order needs a payment check: see Manage orders and payments. Search Square for the order number, then record the payment on the order if it is there.
- A refund you make from the order is sent to Square. Square does not tell Map D about refunds made in its own dashboard, so record those on the order yourself.
- Square is for booth and service orders. Ticket checkout does not offer card payment through Square.
Offline payments
Turn on the offline options you accept and write the instructions buyers see:
- Wire transfer: your bank details, and the button label.
- Check: where to mail it, and the button label.
- Invoice: the receipt text, and the button label.
Each offline option you turn on lets a buyer finish checkout without paying online, so turn them all off if you want every buyer to pay by card. When the section is closed, its summary shows how many options are on, or Off when there are none.
With Direct purchase, offline orders are confirmed right away and show as awaiting payment until a payment is recorded. With Manager approval, they wait for you to approve them first. See Manage orders and payments.
An exhibitor who chose invoice, check or wire can still use the order's online payment link if you accept online payments. Once the payment succeeds, the order records the card or bank account method they used, and its paid amount and remaining balance update.
Deposits

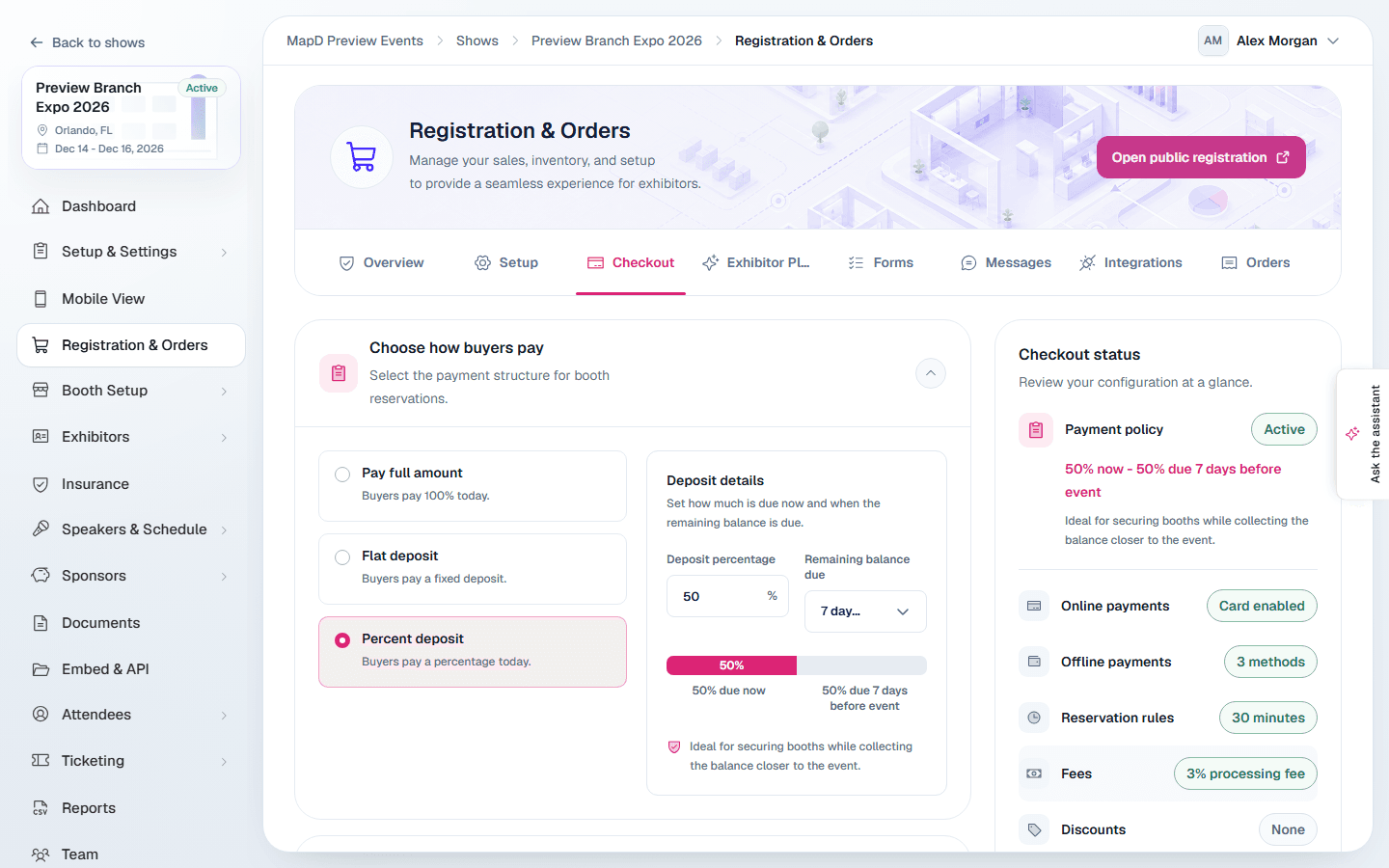

Under Choose how buyers pay, pick Pay full amount, Flat deposit or Percent deposit. Set Remaining balance due to At checkout or a preset number of days before the event. Choose Custom to enter your own whole number in Days before the event; 0 means at checkout. The same timing options are available for all three payment choices.
Balance reminder emails exhibitors who paid a deposit a link to pay the rest before their balance is due. It is on by default, 7 days before the due date, except on shows moved from your previous platform, where it starts off until you turn it on. Pick a preset, or choose Custom under Reminder timing and enter 1 to 90 whole days in Days before the balance is due. You can also turn it off. Each order gets one reminder, and its activity on the order shows Balance reminder sent. Orders awaiting approval, canceled or archived orders, and orders on read-only shows get none. Checkout only promises a reminder while it is on.
Partial payments let exhibitors choose how much to pay online. Turn on At checkout, On the pay-your-balance page, or both, and set a Minimum amount (0 allows any amount). Exhibitors can pay anything from the minimum up to what they owe; when less than the minimum is left, they pay what is left. Offline methods such as check or wire are not affected.
Booth codes hides the price of booths that need a booth code. Exhibitors see the price once they enter the code and the booth is in their cart. See Keep a booth for an exhibitor.
QuickBooks
In the Checkout section of Setup, select Connect to QuickBooks and sign in to your QuickBooks company in the pop-up. Allow pop-ups for Map D if nothing opens. As with any provider, if no other card provider is active, connecting makes QuickBooks your card provider, so buyers can pay by card right away. If another provider is already taking cards, it stays on: select QuickBooks under Provider, select Use QuickBooks for card payments, then Save to switch. Once connected, turn on Books sync and map your booths, Exhibitor Plus, Lead Retrieval, services and sponsor levels to QuickBooks items, then select Save books sync. Booths, Exhibitor Plus, Lead Retrieval and each service can also post to a QuickBooks class. If you use NOVI, you can set the same booth and service classes on the NOVI product mapping screen too. A line with no item mapped posts to the Default / fallback item and flags the order for reconciliation.
Each order is invoiced to a QuickBooks customer. For a NOVI member, that's the customer your NOVI site links to their company, when NOVI is connected to QuickBooks. Otherwise it's the customer with the exhibitor's company name (or the buyer's name when there's no company), created if there isn't one, and the exhibitor's later orders use the same customer. Once an order is in QuickBooks, it stays with the customer on its invoice.
With Books sync on, a deposit and later online balance payments through QuickBooks Payments are applied to the same QuickBooks invoice, reducing its remaining balance. This also applies when the exhibitor first chose invoice, check or wire and later paid online.
Removing a payment from Edit order does not remove its payment from QuickBooks. If the invoice balance differs from the payments recorded on the order, the order stays on the books reconciliation list and its activity shows QuickBooks payment balance doesn't match. Review the invoice's payments in QuickBooks, correct them there if needed, then save the order again. Syncing the order again keeps the warning until the balances match.
Two notes can appear in an order's activity:
- Saved QuickBooks customer not found: the customer NOVI linked, or the one brought over from your previous platform, isn't an active customer in the connected QuickBooks company. For example, NOVI is connected to a different company, or the customer was deleted, merged or made inactive. The order went to the customer with the company name instead, and the note gives both customer numbers.
- QuickBooks customer created with a new name: the company name is already used in QuickBooks by a vendor, an employee or another customer, and QuickBooks needs names to be unique. The customer was created as the name followed by "(2)", or the next free number.
Orders are posted in your QuickBooks company's own currency only. If the show sells in a different currency, for example a show in CAD with a company that keeps its books in USD, nothing is posted. The order is listed for reconciliation with the note QuickBooks currency doesn't match the show. A customer who is billed in another currency isn't used either: the order goes to a customer in your company's currency.
If QuickBooks stops being authorized, an alert, QuickBooks is no longer authorized, appears at the top of every page of the show and on your organization's home page, with a Reconnect QuickBooks button. Online card payments through QuickBooks fail until you reconnect. The same kind of alert, Buyers can't pay by card, appears when a card provider is switched off because it rejected its credentials or couldn't be reached. See Alerts when buyers can't sign in or pay.
Orders from your previous platform
Books sync never enters anything twice that your previous platform already put in QuickBooks:
- An order that already has a QuickBooks invoice keeps it as it is. New payments recorded in Map D are added to that invoice.
- Payments your previous platform already posted are never posted again.
- Orders with no QuickBooks invoice aren't posted. If you want them in QuickBooks too, turn on Also post orders from your previous platform below Books sync, then select Save books sync. Leave it off if you already entered them in QuickBooks yourself. The switch appears only when there are such orders.
If an order's invoice from your previous platform isn't in the connected QuickBooks company, nothing is posted and the order is listed for you to check. That usually means a different company is connected.
Still need help?
Contact your Map D account team. Include your show name and, if something looks wrong, a screenshot of the page.
